Modulus X - 66

The Modulus-X™ method boasts the best weight-to-strength
ratios and highest load ratings in the industry

Span (ft) Center Load (lbs) Deflection(inch)
5 6,600

0.14
10 4,600

0.56
15 3,200

1.28
20 2,400

2.24
25 2,000

3.64
30 1,700

5.34

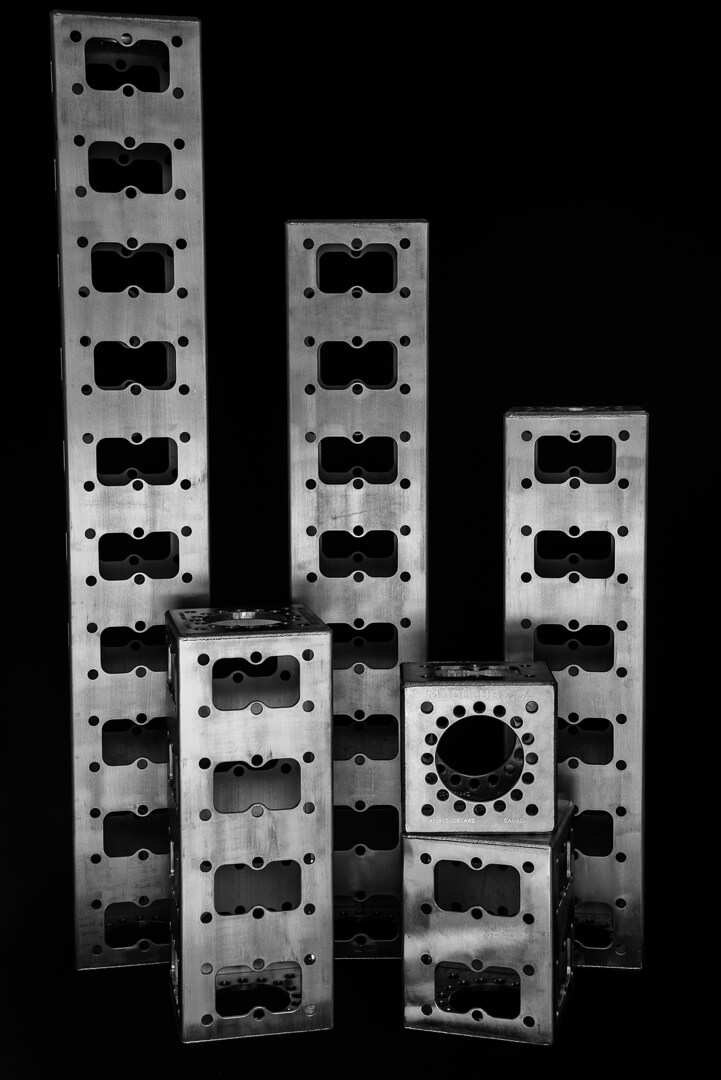

6 x  Modulus X 10’   304,8cm]

6 x  Modulus X   8’   [243,8cm]

2 x  Modulus X   6’   [182,9cm]

4 x  Modulus X   4’   [121,9cm]

4 x  Modulus X   2’   [61cm]

4 x  Modulus X   1’   [30,5cm]

4 x Modulus  X   6”x6” cube

Modulus X - 99

Our Mx|99| series delivers the most reliable and durable
sectional components available in temporary construction.

Span (ft) Center Load (lbs) Deflection (inch)
5 15,250 0.22
10 14,500 0.52
15 10,750 1.24
20 8,000 2.09
25 6,250 3.21
30

5,500

 4.77
35 4,500 6.22
40

3,500

 8.06

2 x  Modulus X   4’   [121,9cm]

2 x  Modulus X   2’   [61cm]

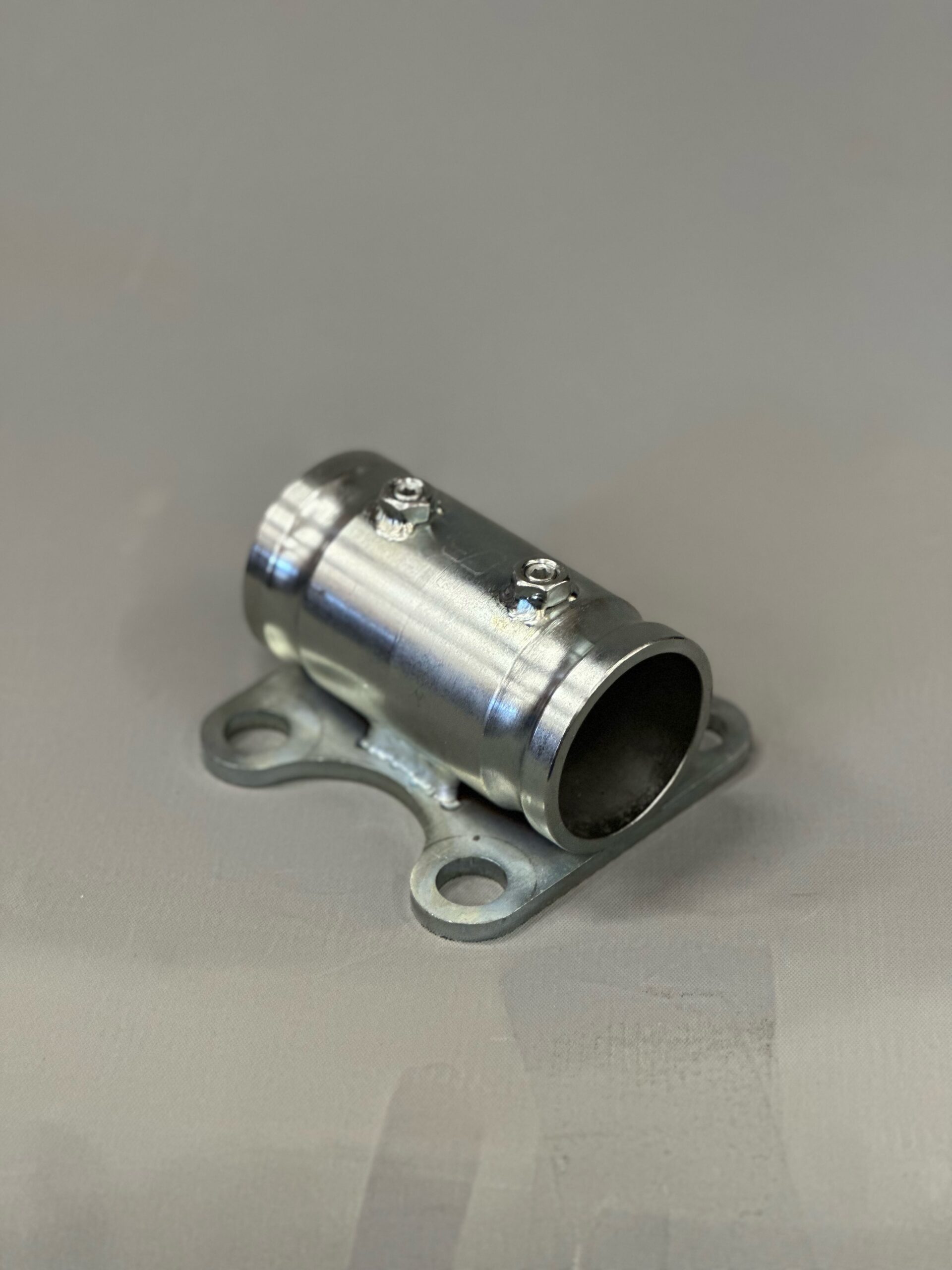

48mm pipe adapter to modulus

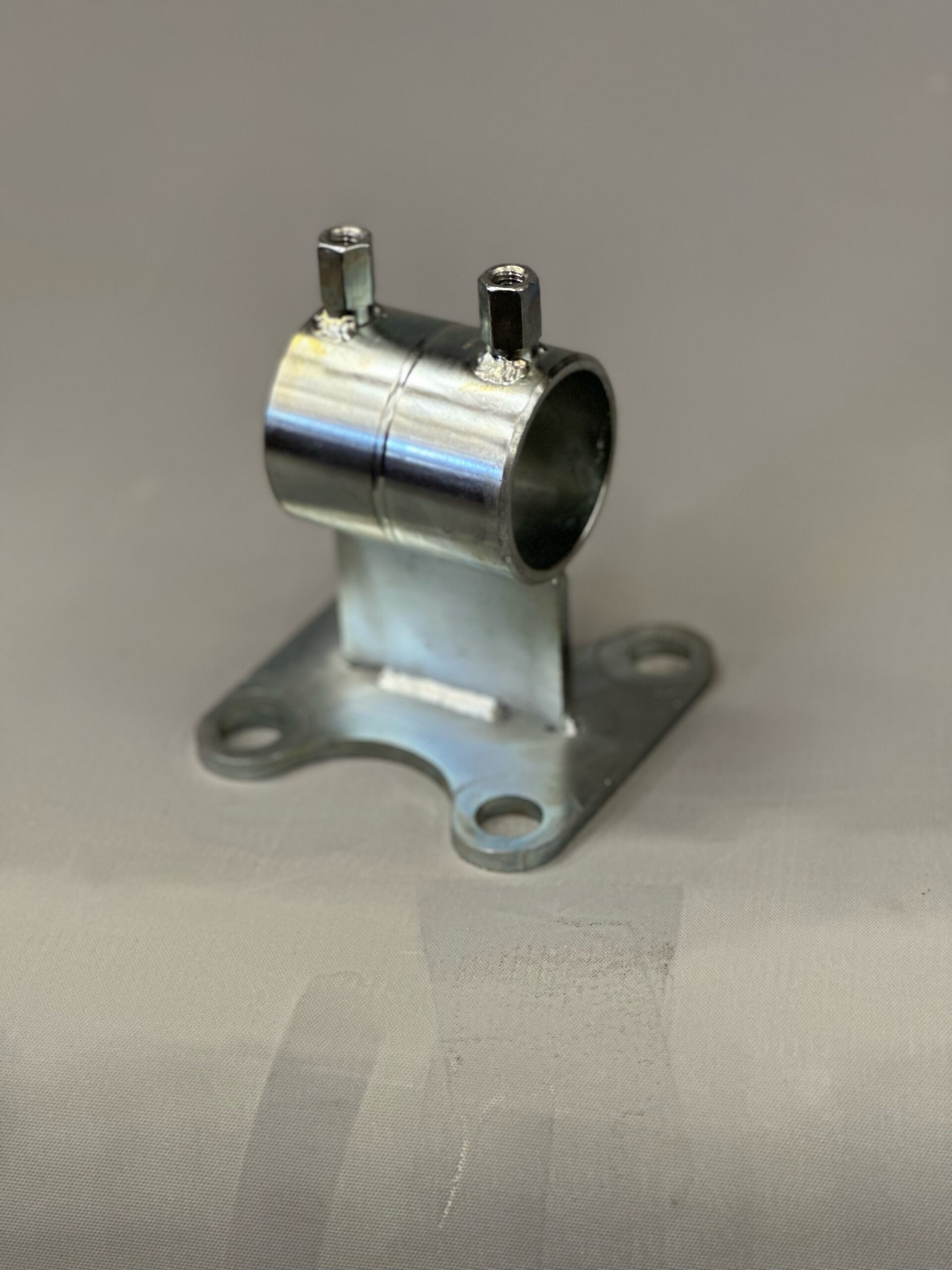

48mm pipe adapter offset to modulus

Screw jack adapter to modulus

6” x 18” Splice Plate

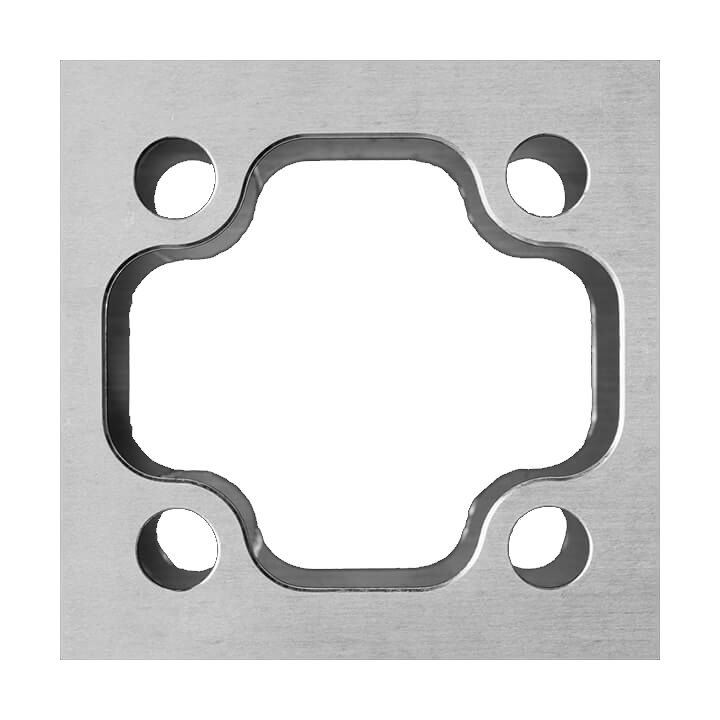

12” x 12″ Washer Plate nut

Universal accessories Modulus

Our  series delivers the most reliable and durable
sectional components available in temporary construction.
